ACOPOWER 200W Mono Solar RV Kits + MPPT / PWM Charge Controller
1x200W PWM20A
$299.00
Skip to product information
Taking a trip in your RV can create lifetime memories. Don't let traditional gas-powered generators or power hookups slow you down. ACOPower 100Watt 20A Mono Solar RV Kit silently recharges your batteries so you can enjoy the great outdoors without the extra noise. Solar panels also allow you to run limited low-watt electrical equipment without a power hookup.
ACOPOWER 200W Mono Solar RV Kits + MPPT / PWM Charge Controller
$299.00
Shipping calculated at checkout.
Pickup currently not available
ACOPOWER 100W Mono Solar RV Kits + MPPT / PWM Charge Controller - 100W PWM20A
- Peak Power (Pmax):200W
- Max Power Voltage(Vmp):20.4V
- Max Power Current(Imp):9.8A
- Weight:26.5 lb/12kg
- Peak Circuit Voltage(Voc):24.3V
- Short Circuit Current(Isc): 10.2A
- Wind resistance:2400pa
- Dimension: 54.72 x 27.56x 1.3 Inch
- Maximum Power at STC (Pmax): 100W
- Maximum Operating Voltage (Vmp): 17.48V
- Maximum Operating Current (Imp): 5.71A
- Dimension: 1130x510x35mm / 44.5x20.1x1.4 in
- Open-Circuit Voltage (Voc): 22V
- Short-Circuit Current (Isc): 6.14A
- Operating Temperature: -40ºC to 85ºC
- Weight: 9.5kg / 20.9 lbs
- Nominal System Voltage: 12v/24v/36v/48v DC auto work
- Rated Charge Current: 60A
- Max. PV Open Circuit Voltage: 150V/138V
- Max. PV input power: 1125W/12V, 2250W/24V, 2812.5W/36V ,4500W/48V
- MPPT Voltage Range: (Battery Voltage+2V) ~72V
- Dimension:261*216*119mm
- Grounding: Common negative
- Battery Input Voltage Range: 8V～32V
- MPP voltage range:V(BAT)+2V～108V
- Rated Charge Power : 750W/12V, 1500W/24V, 2250W/36V ,3000W/48V
- RS485 Interface: 5VDC/200mA(RJ45)
- Installion Notes：First connect the battery；Then connect the load; Finally connect the solar panel.
- ACOPOWER 50A MPPT SOLAR CHARGE CONTROLLER
- Nominal System Voltage: 12v/24v/36v/48v DC Auto
- Rated Charge Current: 50A
- Max. PV Open Circuit Voltage: 150V/138V
- MPP Voltage Range: V(BAT)+2V～108V
- Working temperature: -25℃～+50℃
- RS485 Interface: RS485(RJ45)
- Dimension: 261*216*119mm
- Grounding: Common negative Design
- Battery Input Voltage Range: 8V～68V
- Rated charge Power: 625W/12V 1250W/24V 1875W/36V 2500W/48V
- Battery type :Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
- Storage temperature: -20℃～+70℃
- Enclosure: IP33
- Terminals: 16mm2/6AWG
- ACOPOWER MIDAS 40A MPPT SOLAR CHARGE CONTROLLER
- Nominal System Voltage: 12/24VDC Auto
- Rated Charge Current: 40A
- Max. PV Open Circuit Voltage: 100V (1) 92V (2)
- MPPT Voltage Range: (Battery Voltage+2V) ~72V
- Working temperature: -25℃～+50℃
- Terminals: Up to 6 AWG
- Dimension: 10x7.28x2.67 in / 255×185×67.8mm
- Grounding: Common negative
- Battery Input Voltage Range: 8V～32V
- Rated charge Power: 520W/12V 1040W/24V
- RS485 Interface: 5VDC/200mA(RJ45)
- Storage temperature: -20℃～+70℃
- Enclosure: IP33
- Weight: 3.75lbs / 1.7kg
- ACOPOWER 30A MPPT SOLAR CHARGE CONTROLLER
- Nominal system voltage: 12/24VDC Auto
- Battery input voltage range: 8V～32V
- Max.PV input power: 12V/390W, 24V/780W
- Working environment temperature: -25℃～+50℃
- Grounding: Common negative
- Power Terminals: 6AWG(16mm2)
- Dimensions: 228x164x55mm
- Rated charge current: 30A
- Max.PV open circuit voltage: 100VDC
- MPP voltage range: V(BAT+2V)～72V
- Storage temperature range: -35℃～+80℃
- Communication: RS485
- Enclosure: IP30
- Weight: 1.2kg

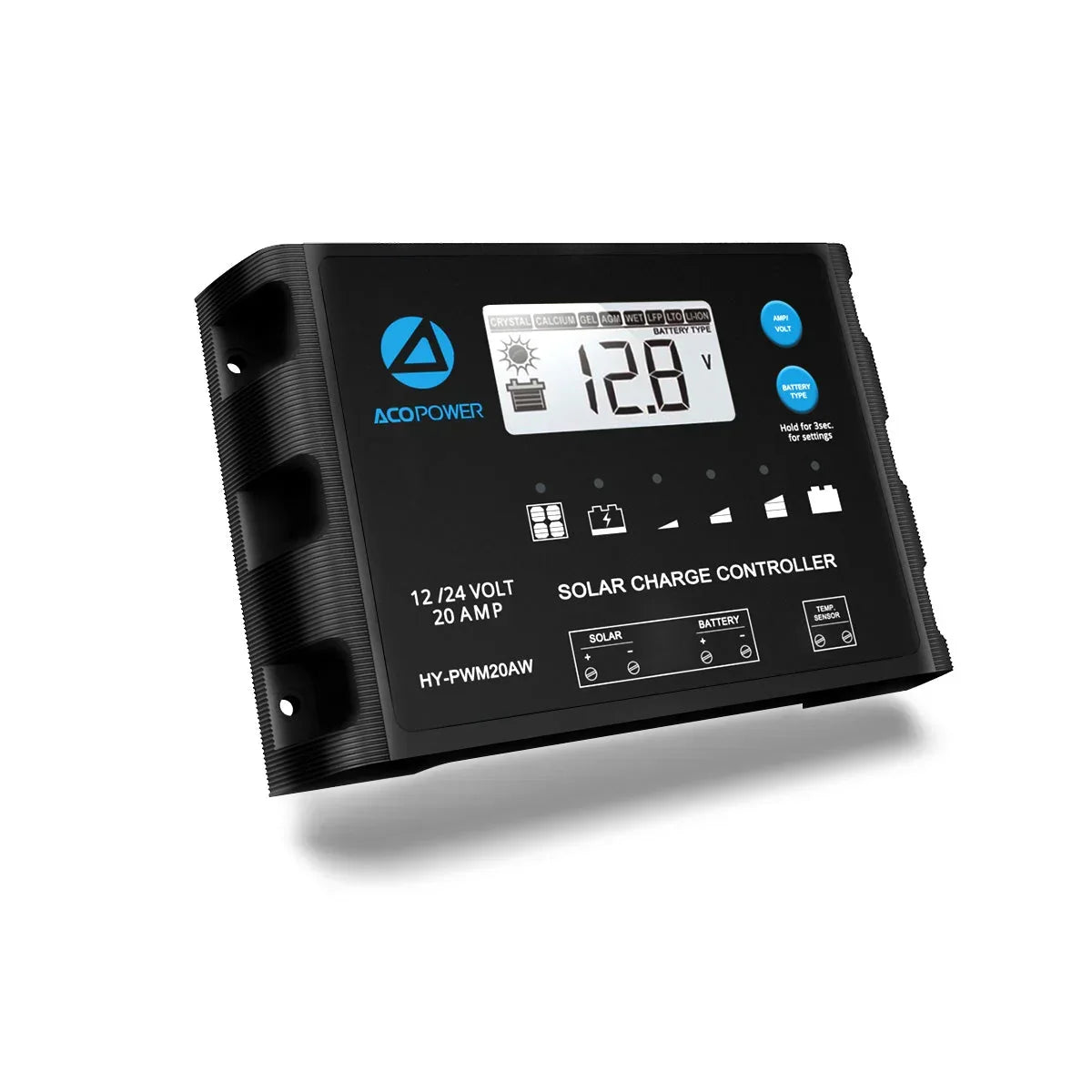

- Nominal Voltage: 12V/24V DC
- Rated Charge Current: 20A
- Battery Start Charging Voltage: 3V
- Operating Temperature: -40°F to 140°F
- Terminals: Up to 10 AWG
- Dimensions: 5.59x 3.7x 1.06 inches
- Grounding: Common Negative
- Max. PV Input Voltage: 50V
- Temperature Compensation Coefficient: -24mV/°C
- Storage Temperature: -40°F to 185°F
- Enclosure: IP65
- Weight: 1.1 lbs
